Water Treatment & Hydrocyclones
A fully integrated system for removing clay and other suspended material from plant water in order to recycle water in a closed-circuit system, mainly in the preparation of sands and aggregates in quarries.
The hydrocyclone system uses water at high velocity to centrifugally remove unwanted clay and other material from sand, or fine sand from organic material, then expel the material onto a vibrating drying screen which is an integral part of the unit. The dry clean material is then moved by conveyor to the stockpile. The heavy suspension water goes to the clarifier densifier for recycling.

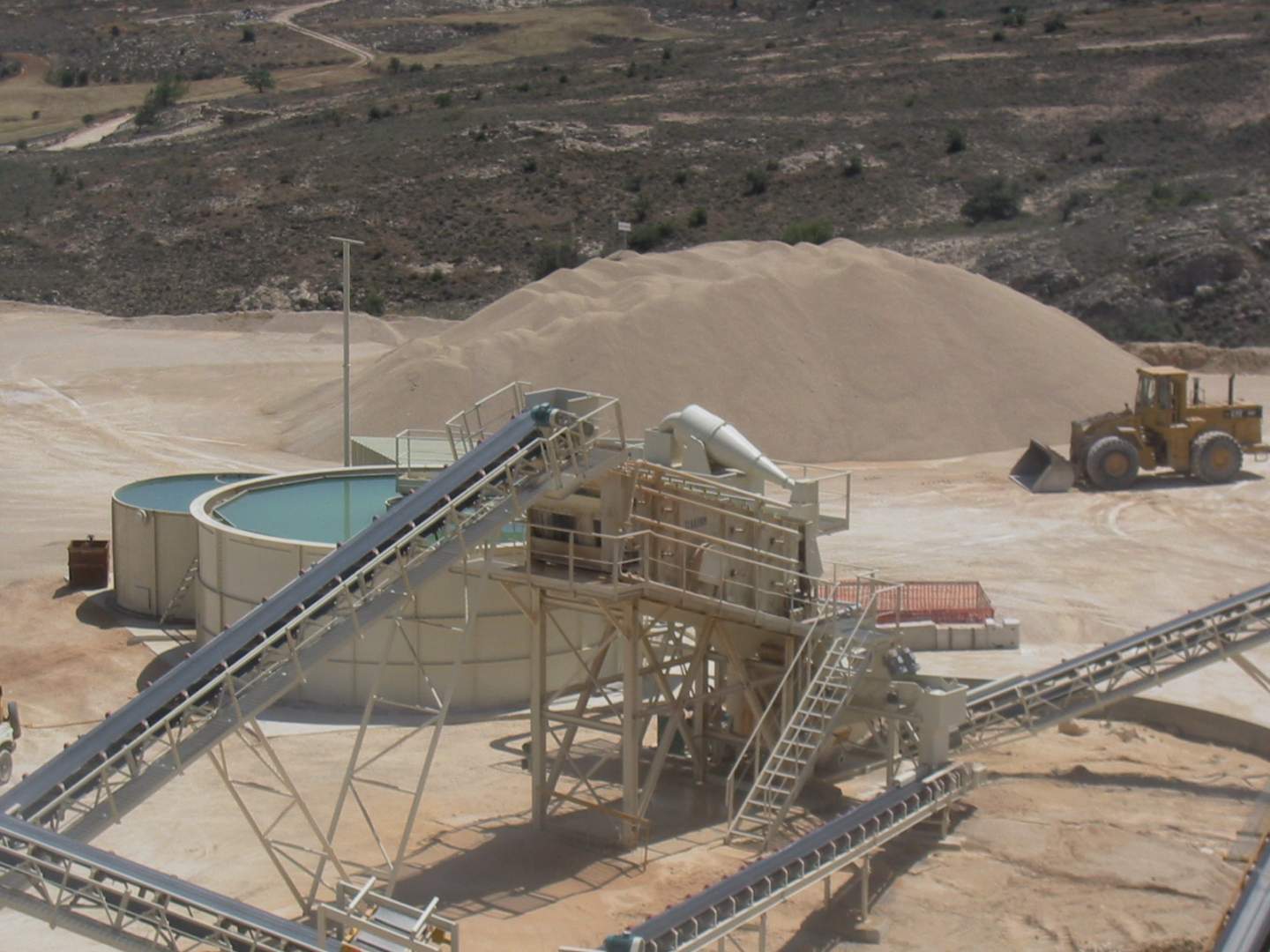

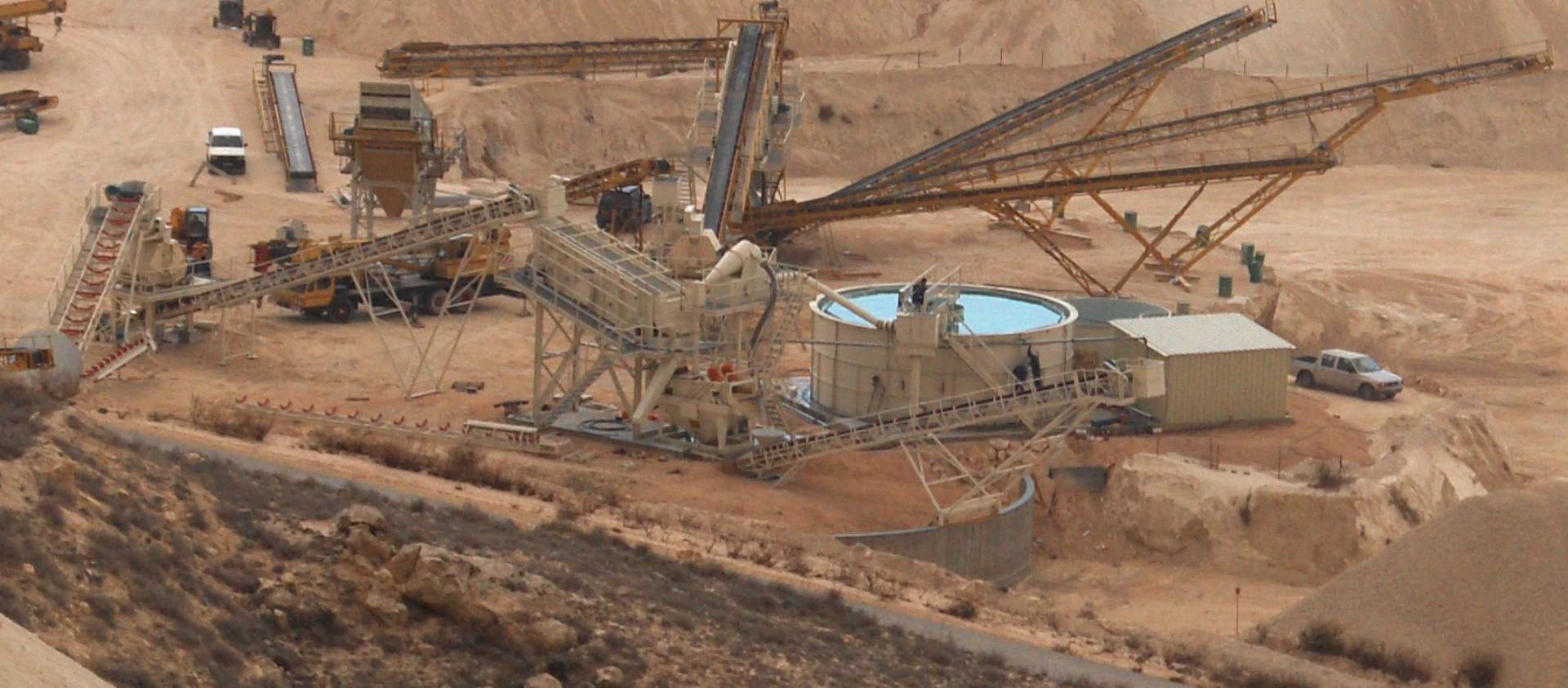

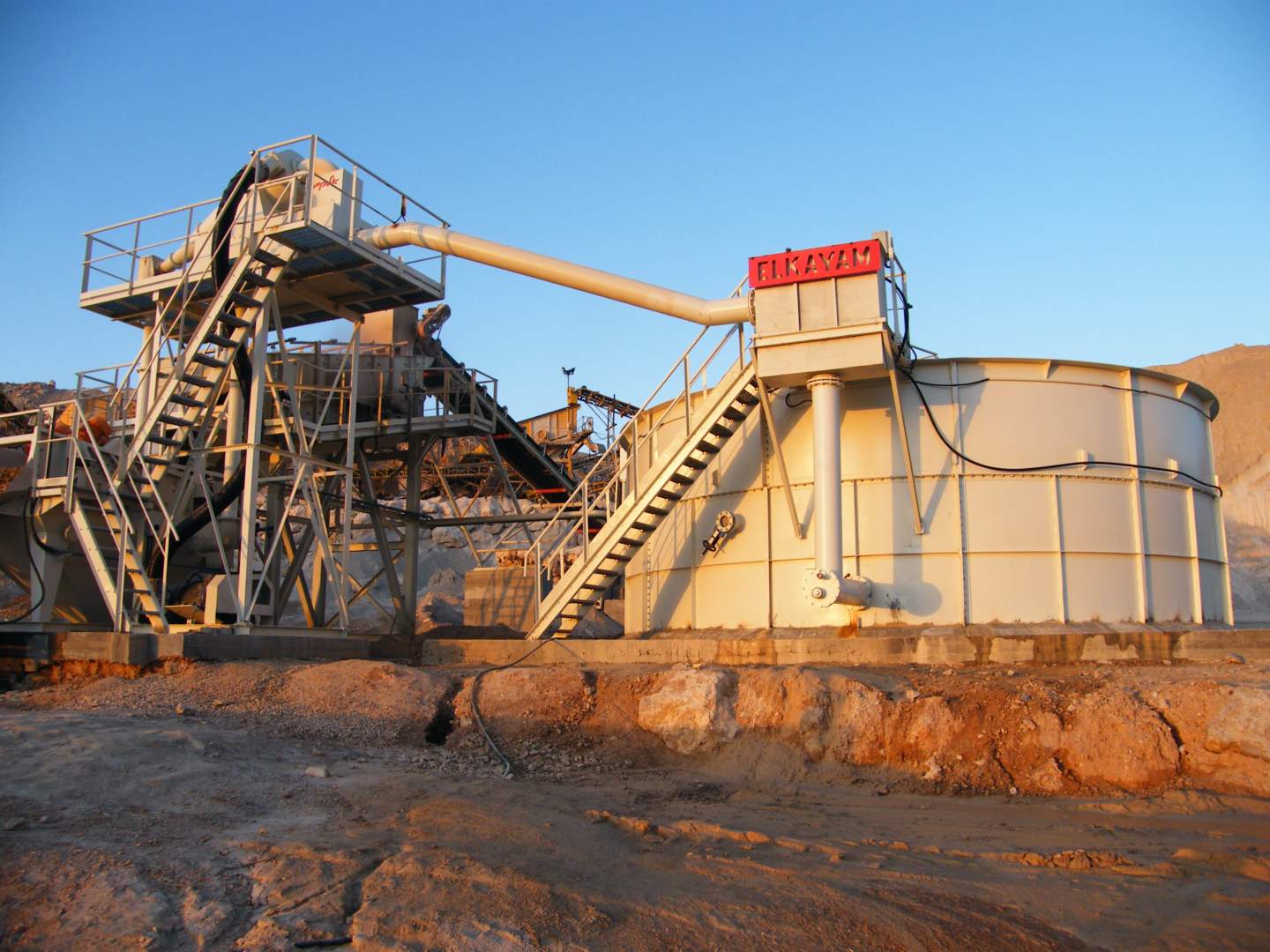

The System :

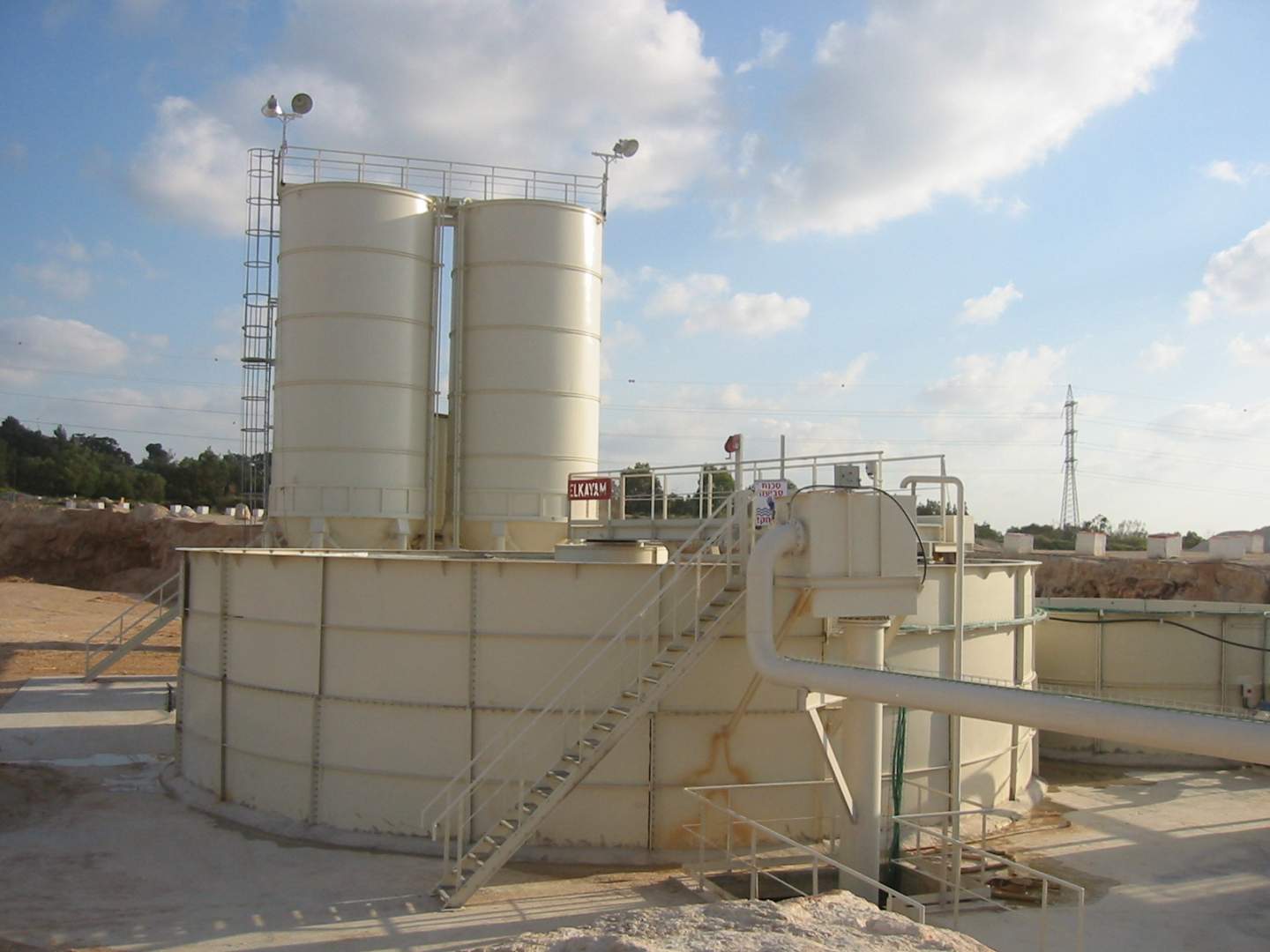

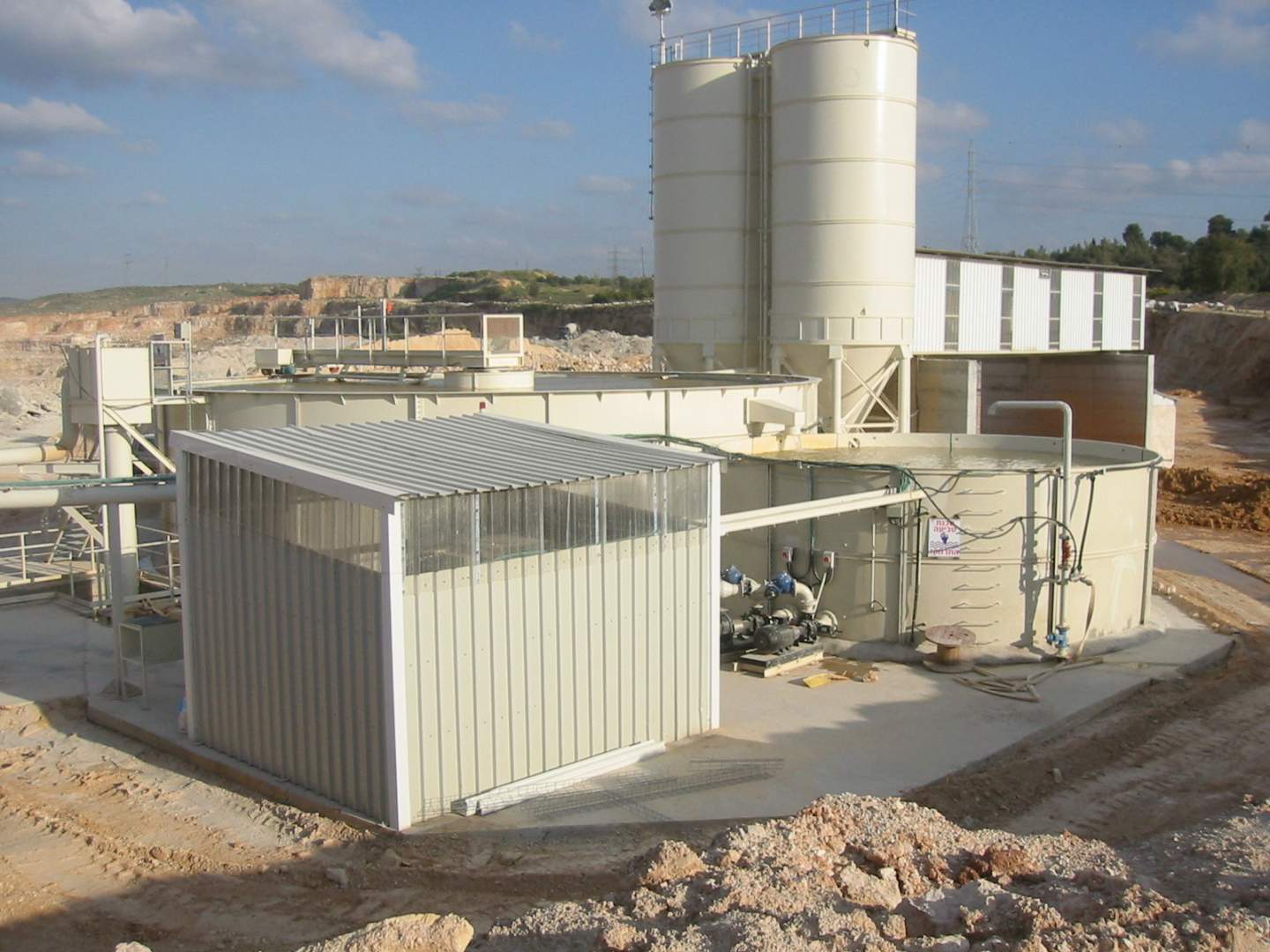

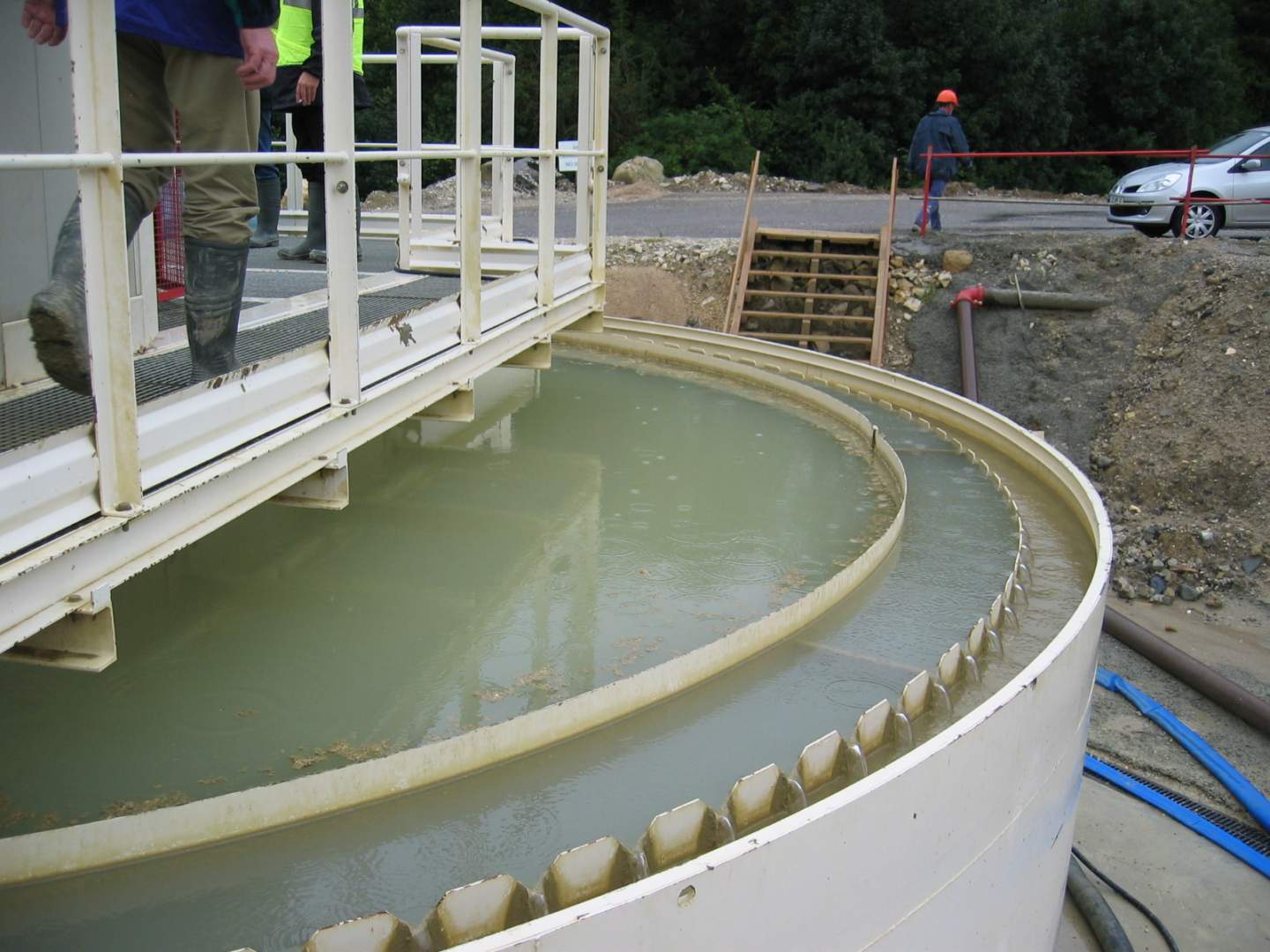

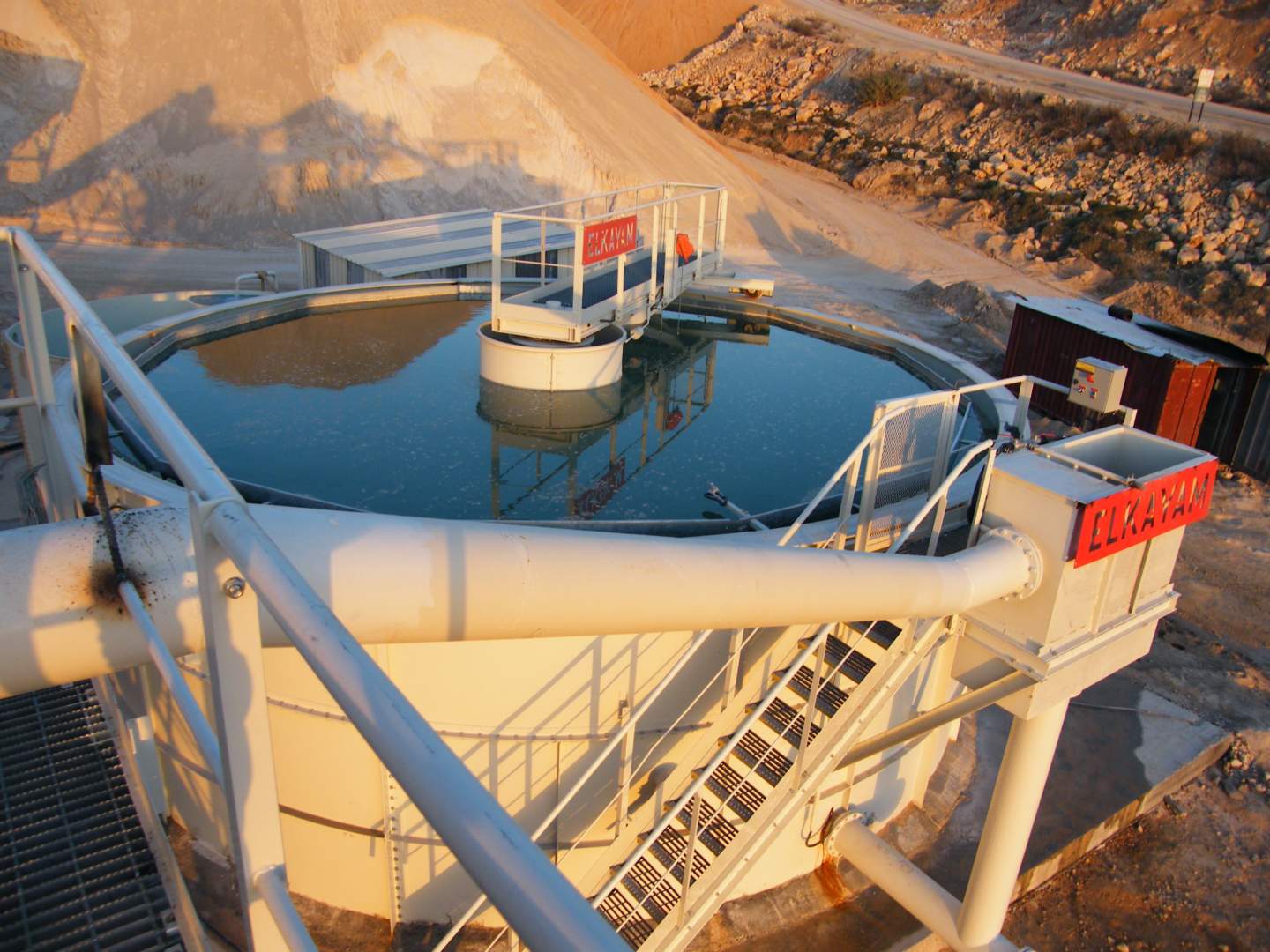

CH Clarifier Densifier
- Minimum infrastructure for low installation costs
- Adjustable oscillating scrapers for optimizing sludge density
- Central mixer for pre-expulsion sludge homogenizing
- Angled sludge guide to ease the suction load of the evacuation pump
- ELKAYAM produced computerized polyelectrolyte dosing system –
precise and practical - Clarified water complies with the “Merli” law

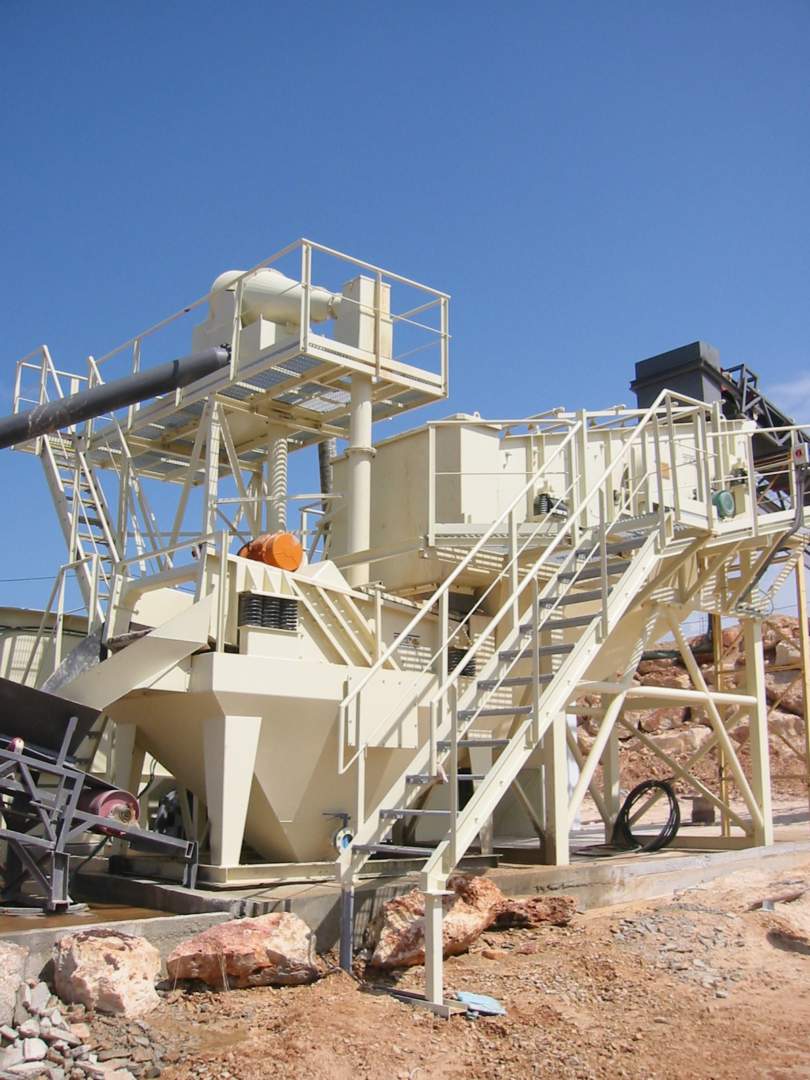

GS Series Hydrocylones
- High output recovery
- Easily replaceable cyclone wear parts for fast maintenance
turn around - Sturdy design in either horizontal or vertical configuration
- Special Linatex thick coated centrifugal pump

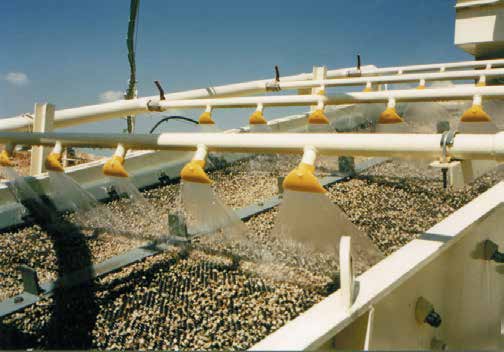

- High efficiency water separation drying screen
- Range of custom matched feeder screens to suit material,
where required.

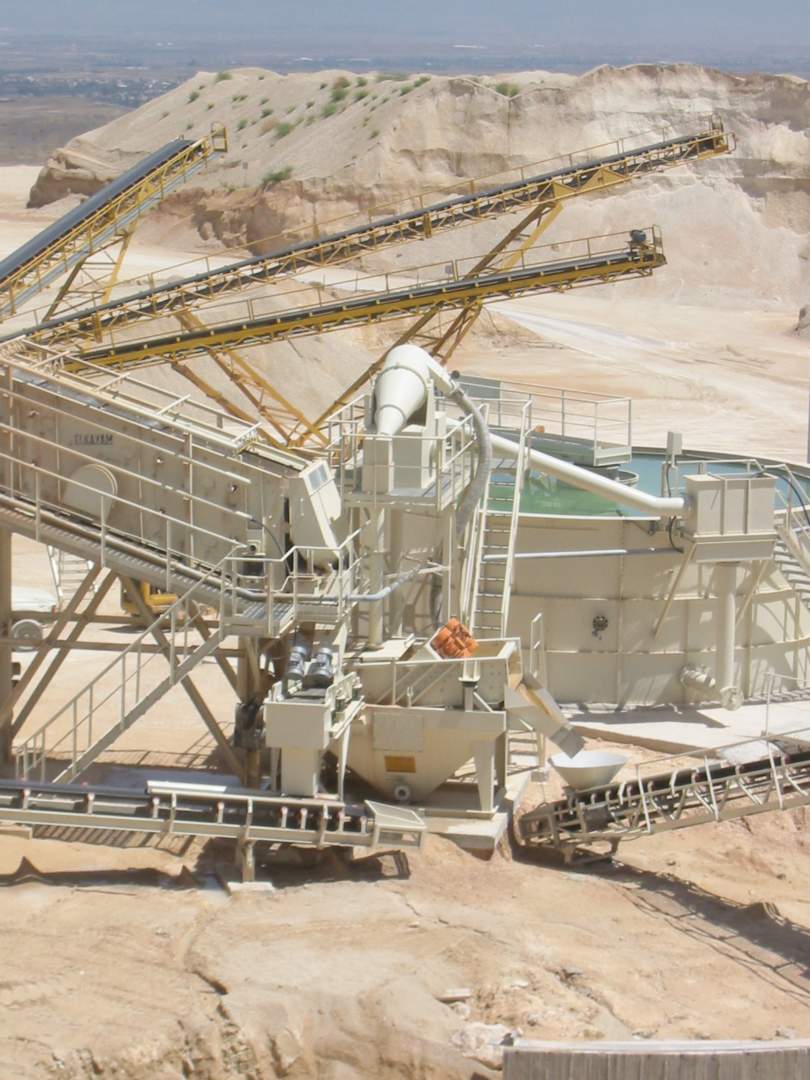

The water-sand-lime mixture is introduced into basin A. Pump B aspirates the water-sand-lime mixture from the bottom of basin A and sends it in a pressurized stream to cyclone C which, by cyclonic centrifuging, separates the clay, lime and the filler of the concentrated sand. The concentrated sand comes out of the top of the cyclone and ejects to the drying screen D that removes the water from the sand which then moves to the unloading chute. The mixture level in the basin A is stabilized by float E that opens and shuts the valve for the mixture (sand and water) recovery and keeps it at a constant level so as to ensure the pump cannot run dry.

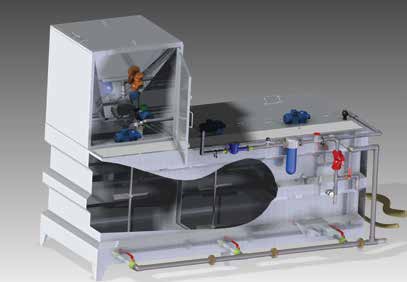

Poly-Electrolyte Systems
- Durable stainless-steel construction
- Easy access for all maintenance requirements
- Fully computerized integrated feed system.
- Polyelectrolyte metering
- Multiple stirrer mixing tanks for fast cycle time.
- Custom matched to the system.
